Size 51 | Size 53 | Size 55 | Size 57 | Size 59 | |
---|---|---|---|---|---|
Average Rider Height | 5'1" to 5’6” | 5'4” to 5'9” | 5'7” to 6'0" | 5'10 to 6'3" | 6’1” to 6'6" |
S-Stack | 510 | 539 | 568 | 596 | 625 |
R-Reach | 376 | 383 | 391 | 398 | 405 |
VTT-Virtual Top Tube | 512.7 | 527.4 | 548.5 | 568.9 | 584.2 |
HT-Headtube | 90.1 | 119.7 | 145.3 | 173.6 | 203.0 |
HA-Head Angle | 71° | 71.3° | 72.5° | 72.8° | 73° |
SA-Seat Angle | 74° | 74° | 73.5° | 73° | 73° |
BBD-BB Drop | 80 | 80 | 78 | 78 | 78 |
WB-Wheelbase | 989.5 | 1004.2 | 1003.3 | 1016.6 | 1029.9 |
FC-Front-Center | 585.7 | 600.2 | 598.7 | 611.9 | 625.1 |
F-Fork A-C | 382.5 | 382.5 | 382.5 | 382.5 | 382.5 |
FR-Fork Rake | 53 | 53 | 46 | 46 | 46 |
T-Trail 40c Tire | 65.5 | 63.9 | 63.3 | 61.7 | 60.0 |
T-Trail 28c Tire | 60.5 | 59.0 | 58.9 | 57.4 | 55.8 |
CS-Chain Stay Length | 417 | 417 | 417 | 417 | 417 |
SL-TT Slope | 10° | 10° | 8° | 8° | 8° |
ST-Seat Tube C-T | 459.4 | 487 | 532.2 | 559.8 | 587.9 |
Handlebar Width | 380 | 380 | 400 | 400 | 420 |
Stem Length | 90 | 90 | 100 | 100 | 110 |
Seatpost Offset | 0 | 0 | 0 | 0 | 0 |
Crankset | 170 | 170 | 172.5 | 172.5 | 175 |
Saddle Width | 140 | 140 | 140 | 150 | 150 |
* Wheelbase and Front-Center measurements are non-linear due to the use of size specific forks.
* Seat tube has a 10 mm forward offset.
It’s (almost) all about the seat-tube! We started with a sloped top tube (8-10 degrees) which allows for more seatpost exposure and thus more compliance. After much engineering and analysis we chose to use a round seat-tube for a 27.2 seatpost: it is lighter, more durable, but more than anything, it is MORE COMFORTABLE.
AERO
Why be slower if you don’t have to? We don’t give up comfort for our aerodynamics, especially since frontal aero is the key.
- Fully internal cable routing
- Wider fork stance for aerodynamics with bigger tires
- D shaped downtube
- Proprietary fork for ideal fork-to-frame transition
- Stack and reach within 5% of most race bikes
STIFF
The downtube is around 60mm in diameter, creating monstrous power transfer. Up front, the proprietary fork with tapered steerer was designed to rail without beating you up. Plus, there are near limitless cockpit combinations that you can choose based on your preferences.
LIGHT
At ~900 grams (no fork or paint) it is close to best in class for the all-road category. Because the Surveyor is handmade to incredibly high standards and quality controlled at every step - achieving light weights without sacrificing durability is a reality.
VERSATILE
BIG. TIRES. RULE. We promise. For most riding, from neglected Canadian roads to light gravel and dirt, a 30-35 mm tire is pretty much perfect. So we kept it simple, we designed a race bike that will take massive tires. Up to 40 mm... officially. Wink.

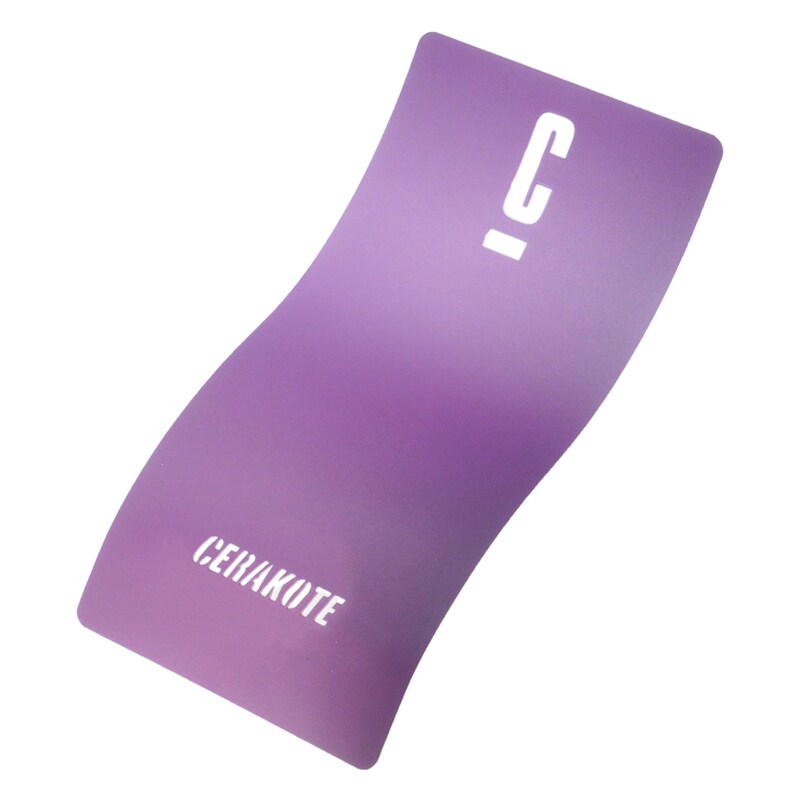

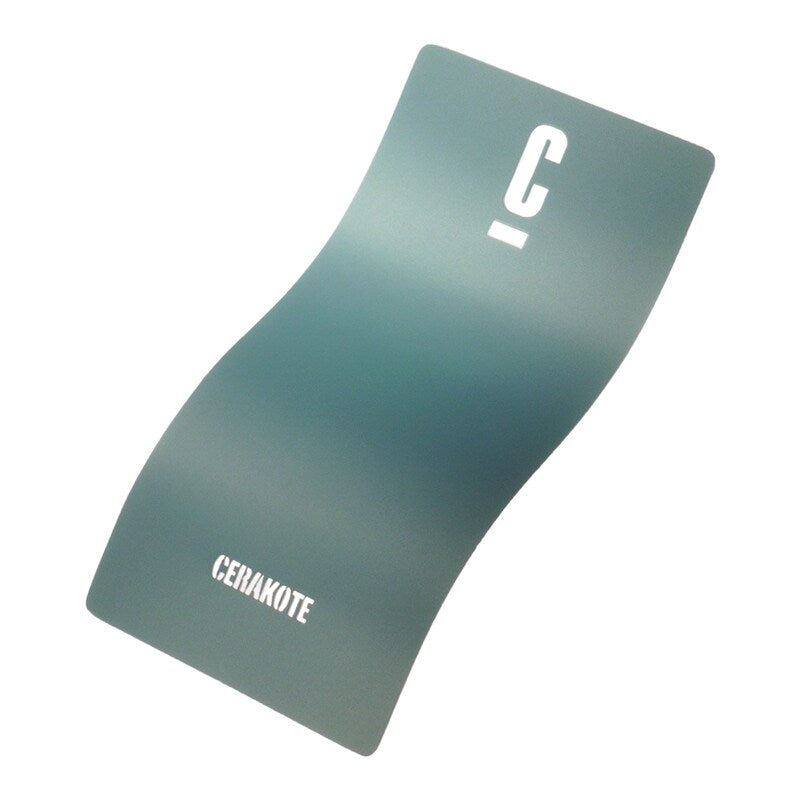

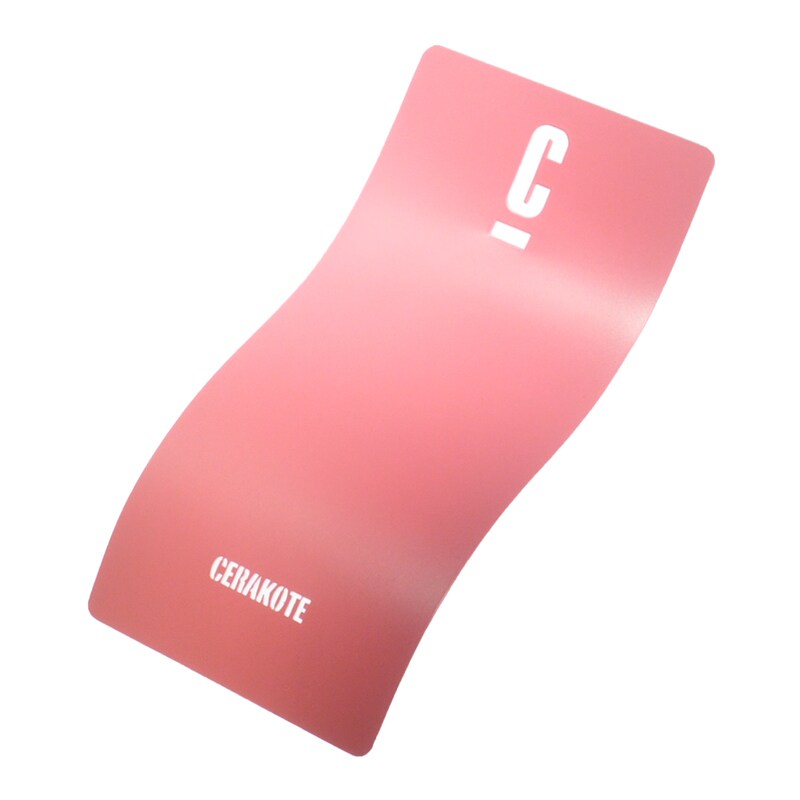

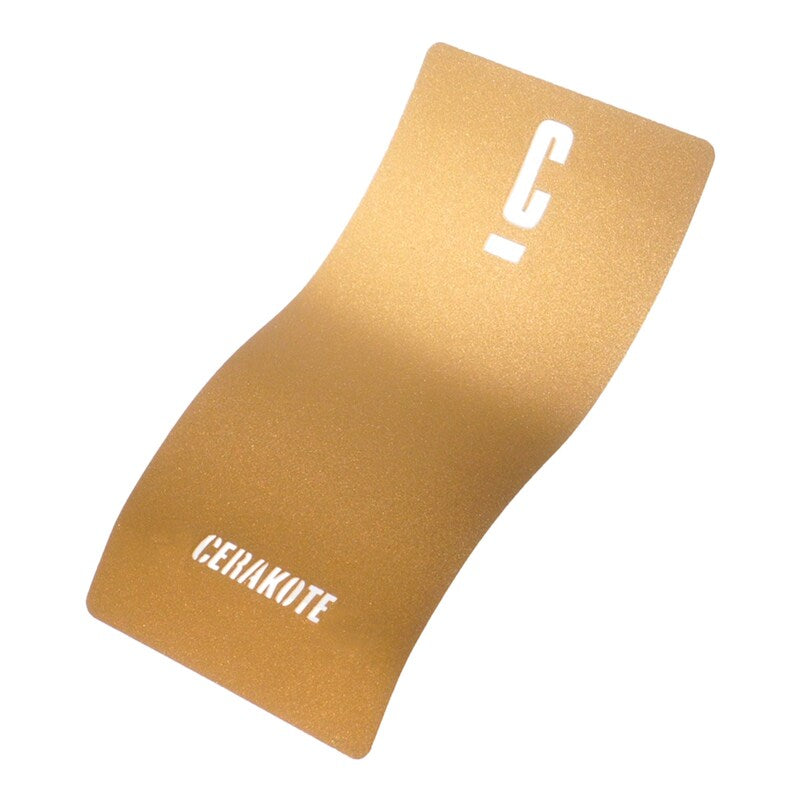

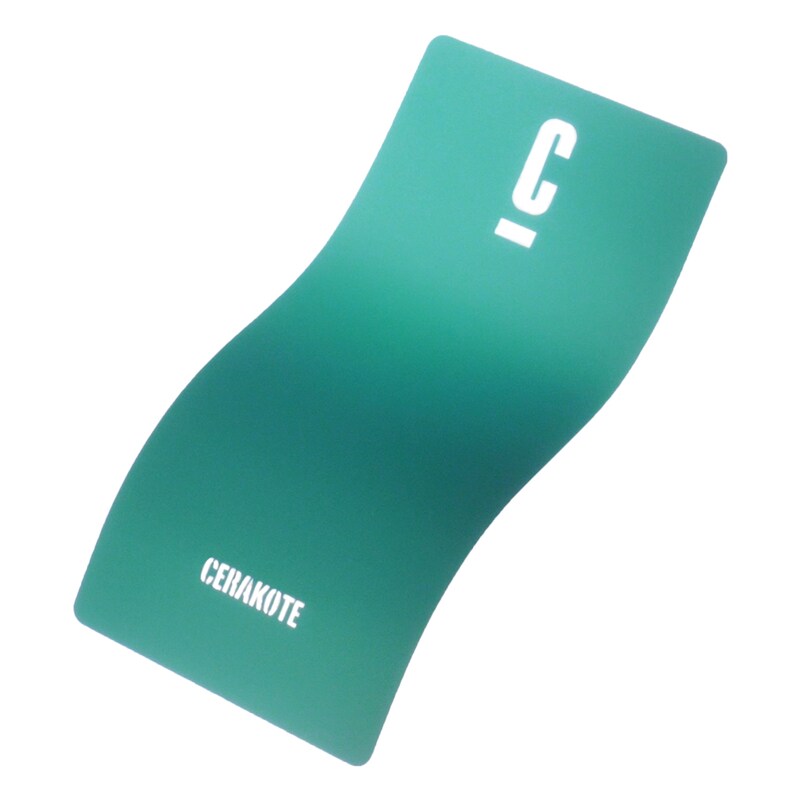

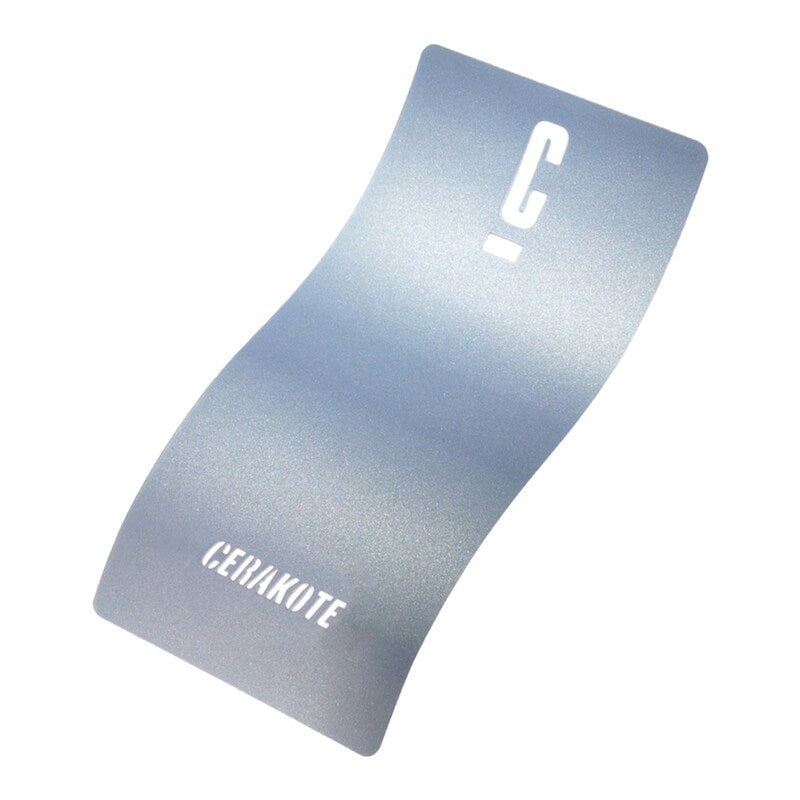

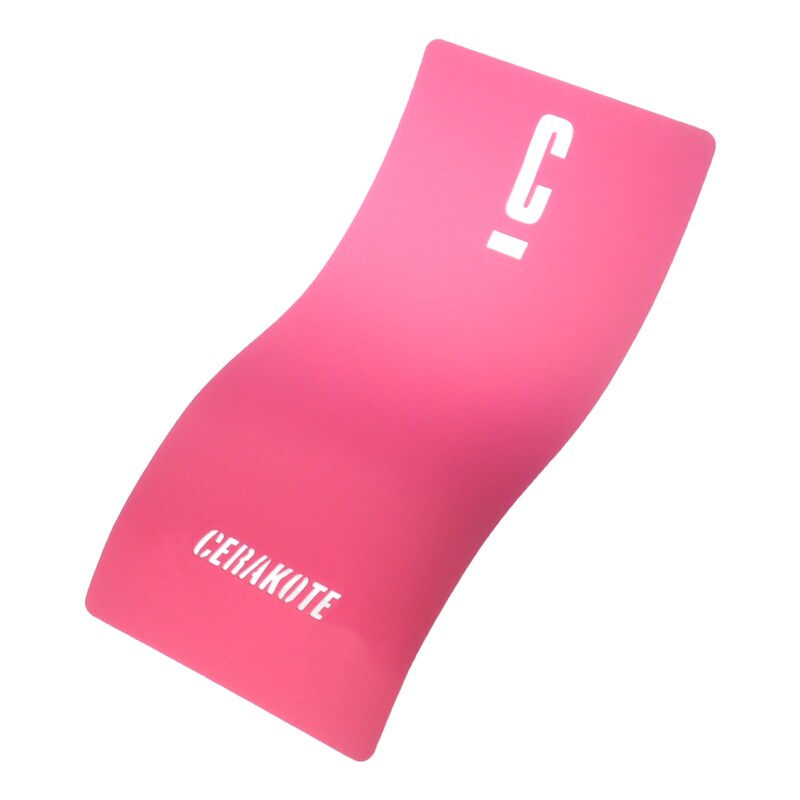

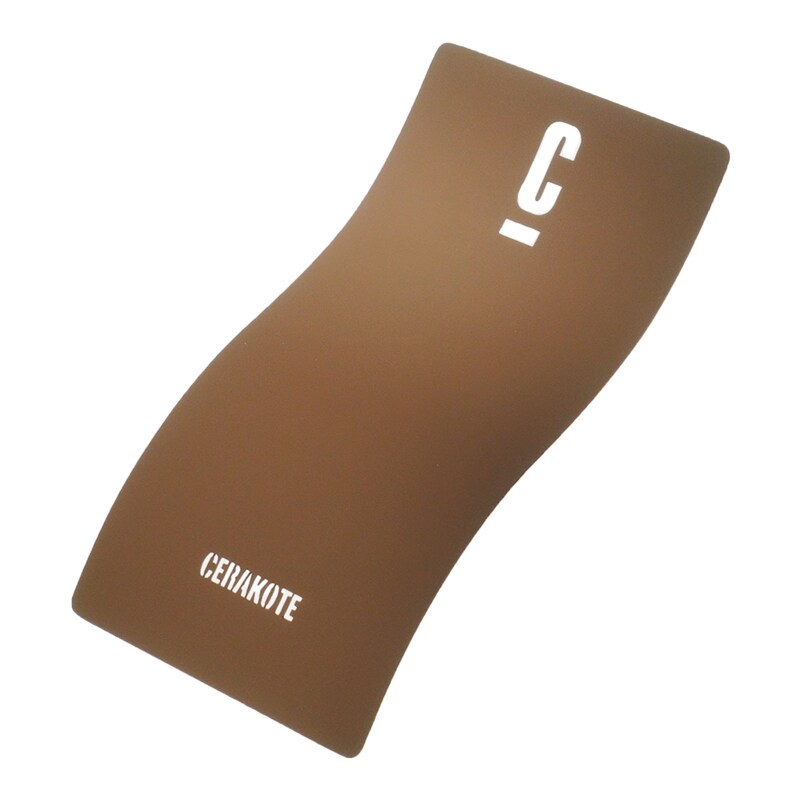

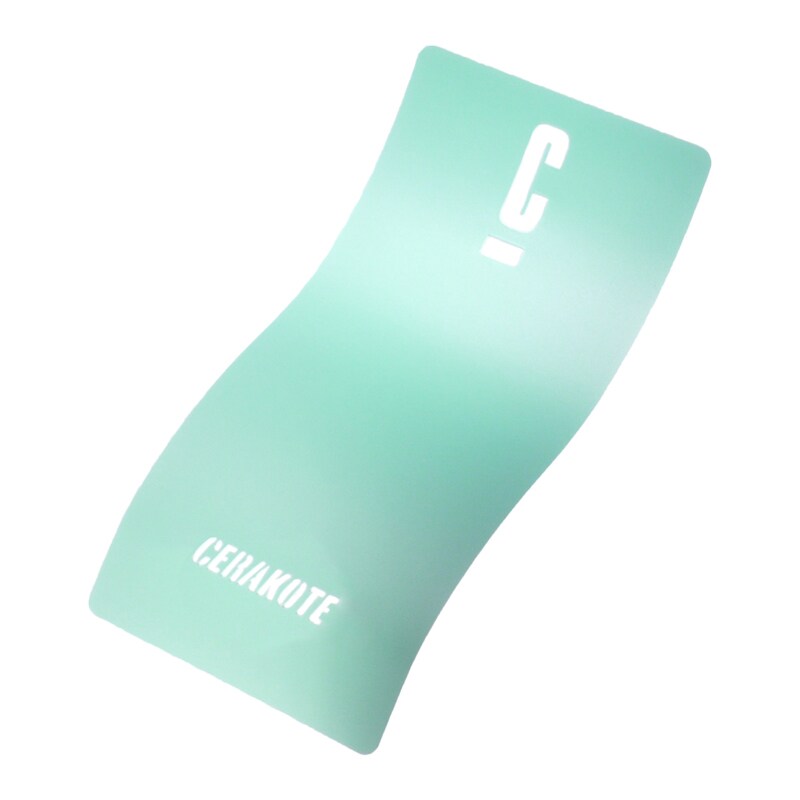

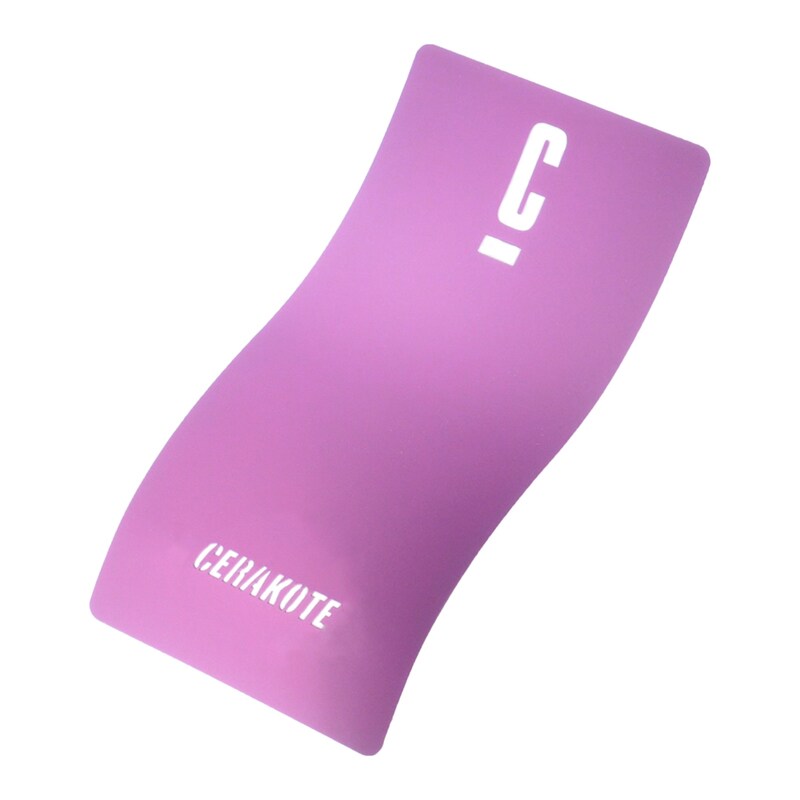

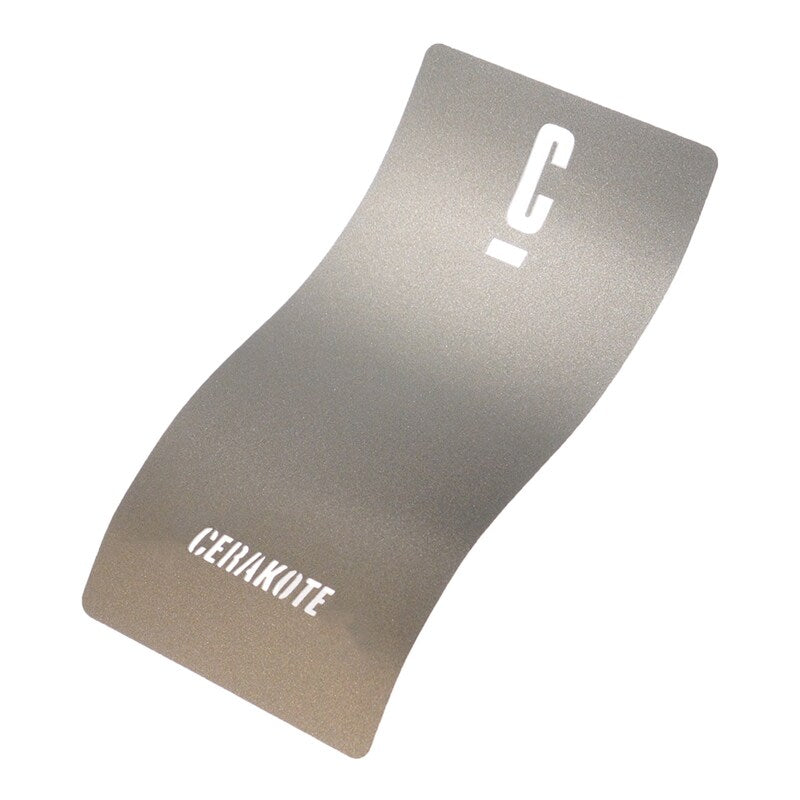

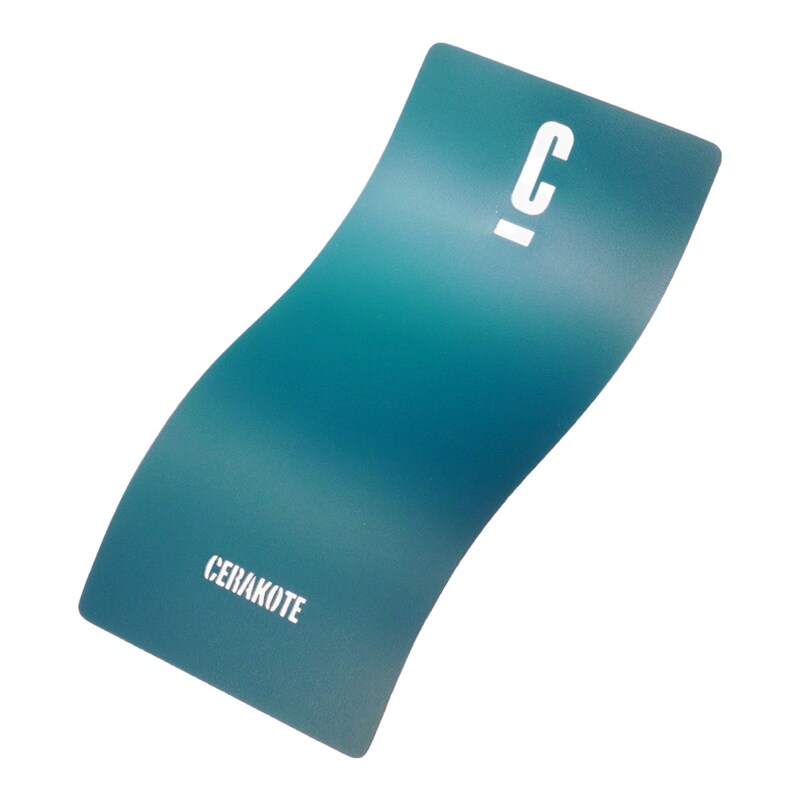

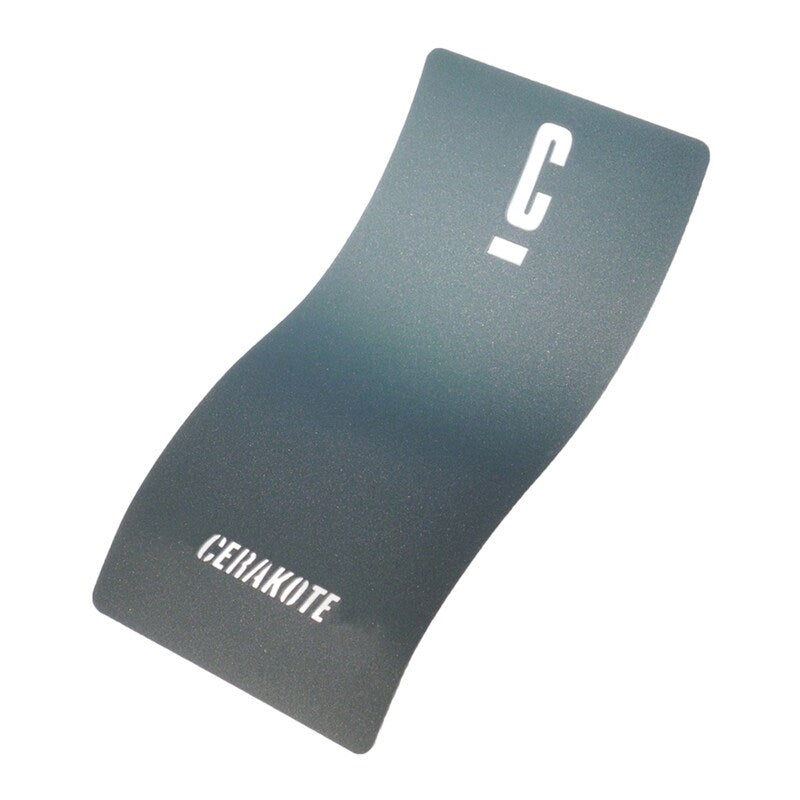

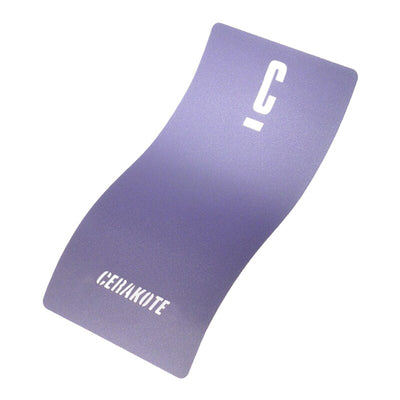

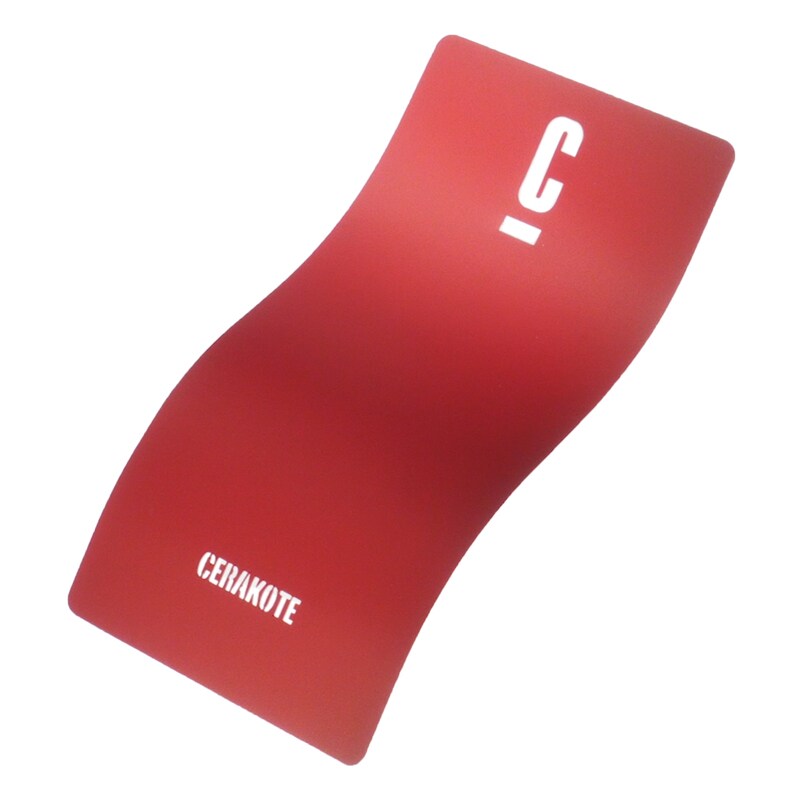

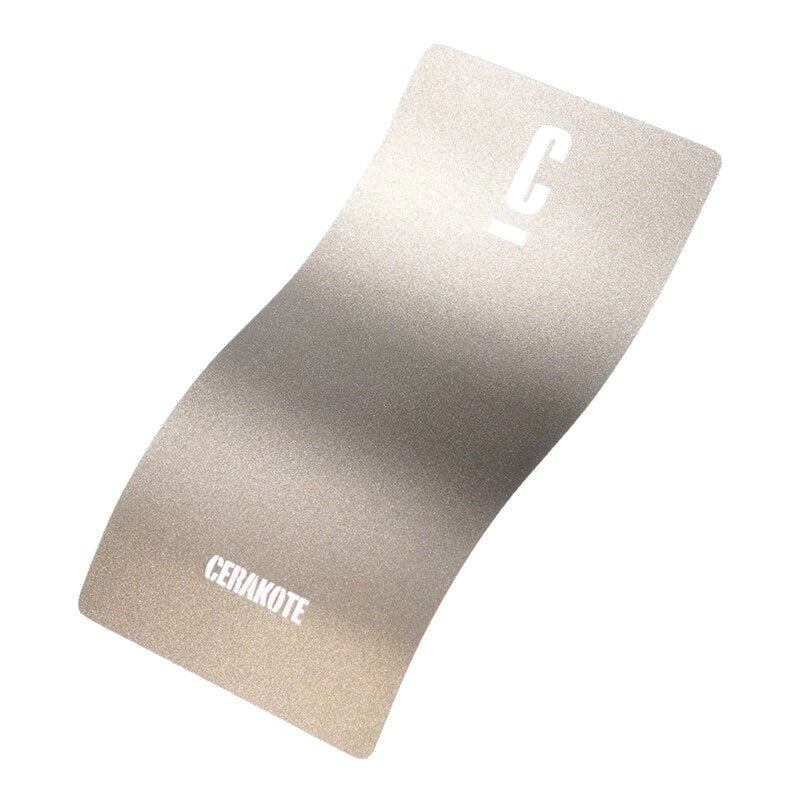

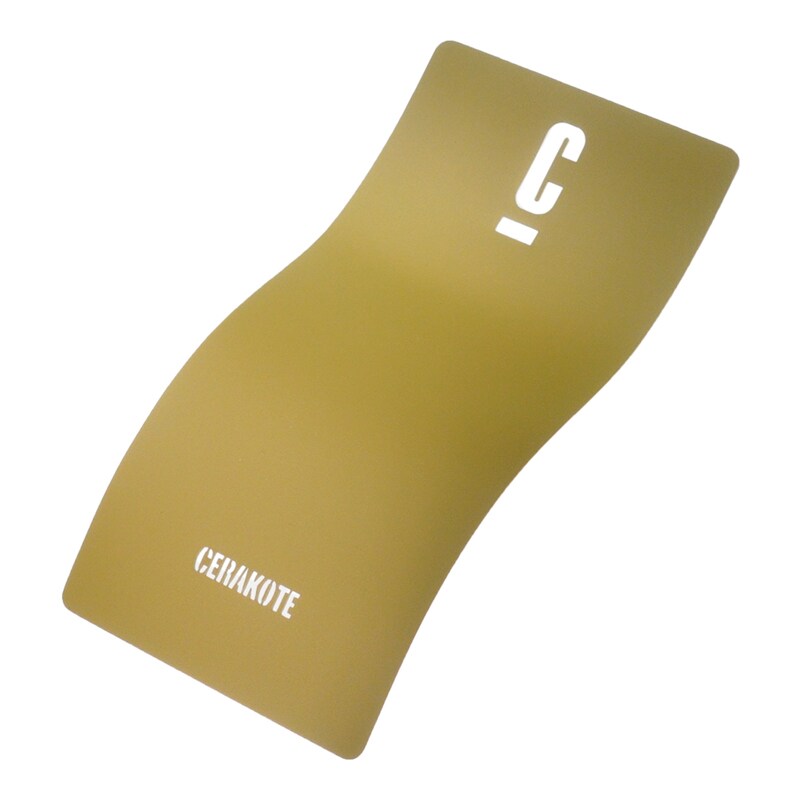

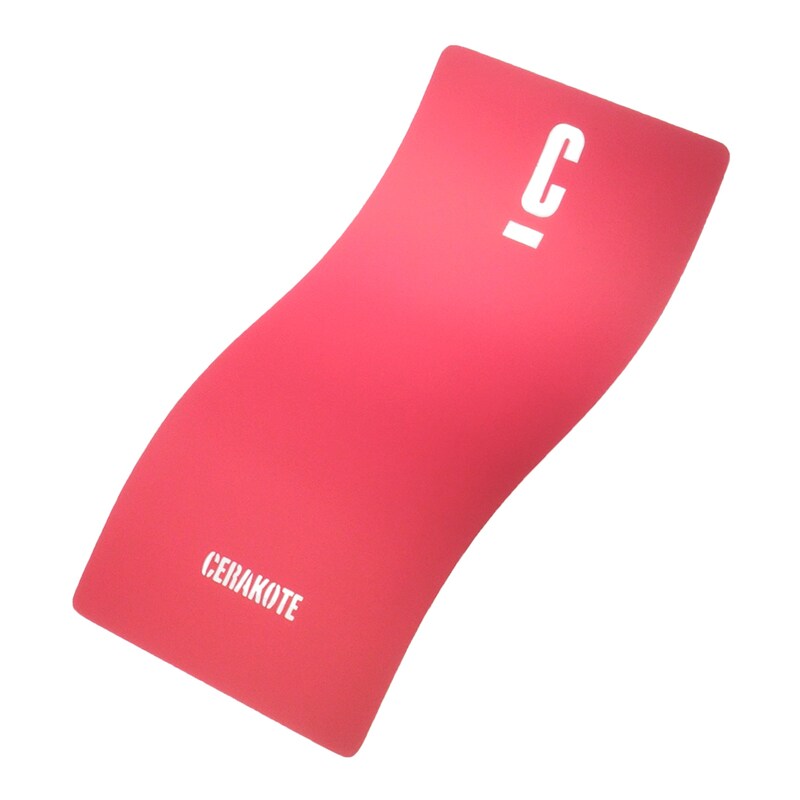

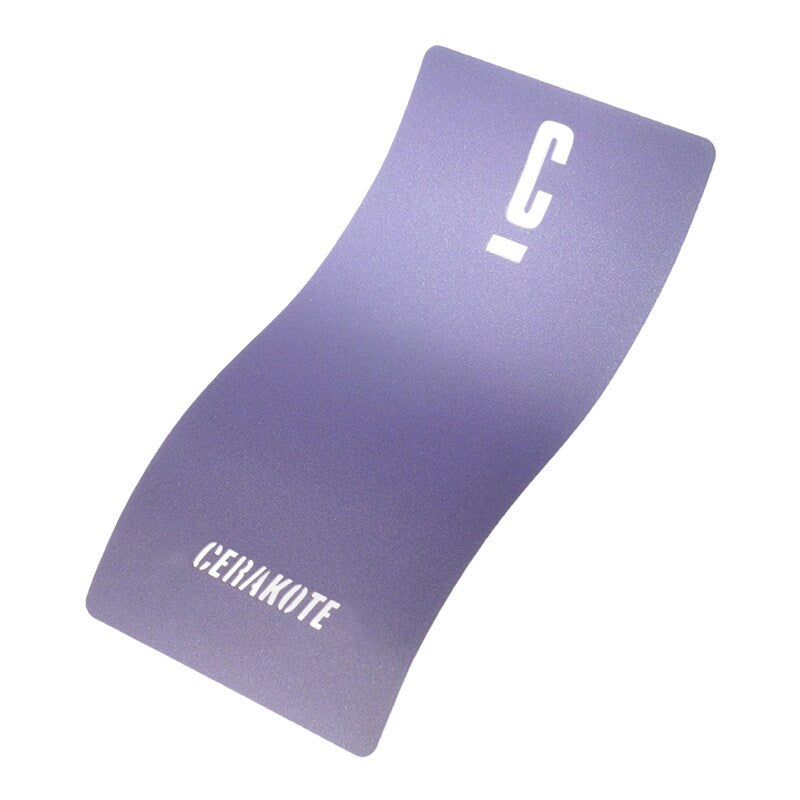

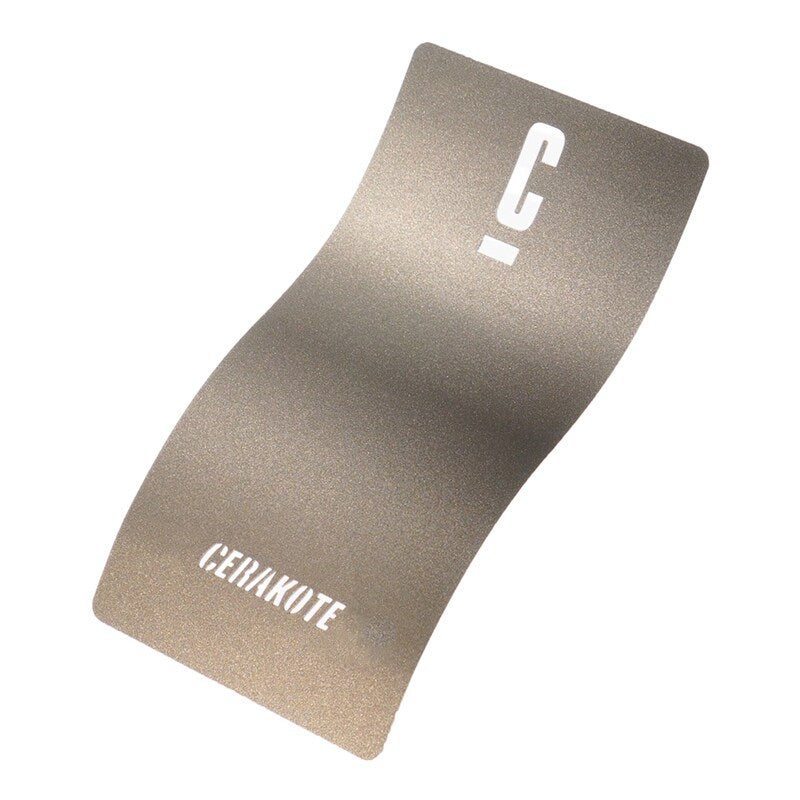

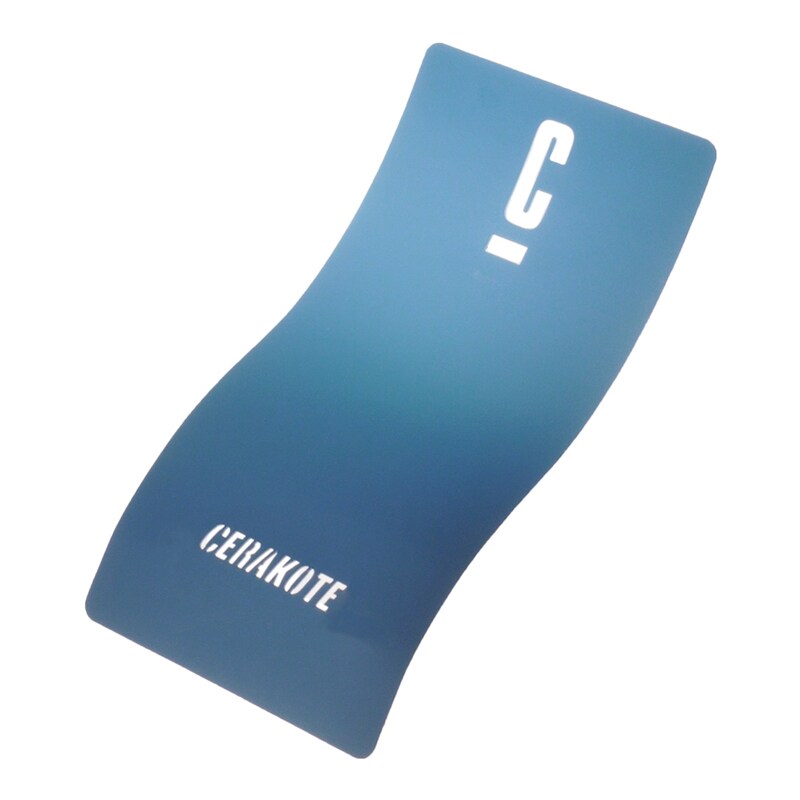

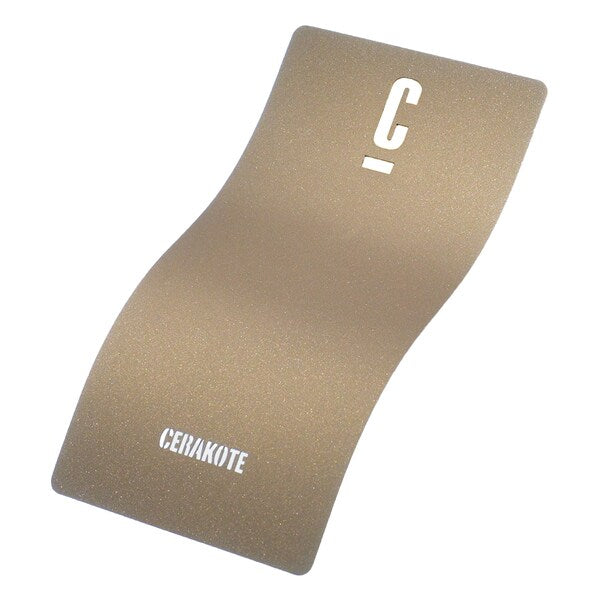

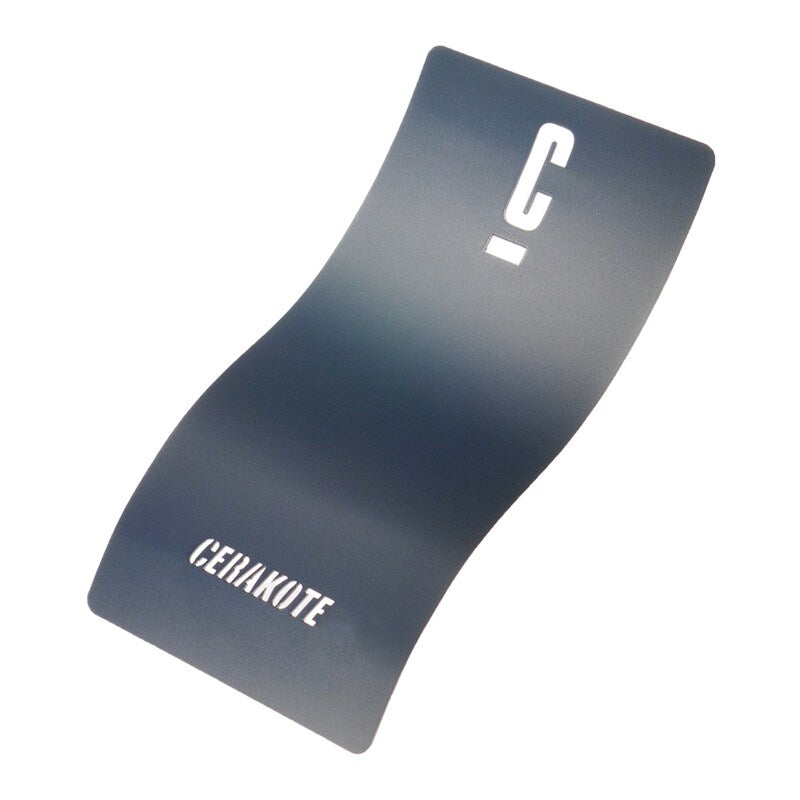

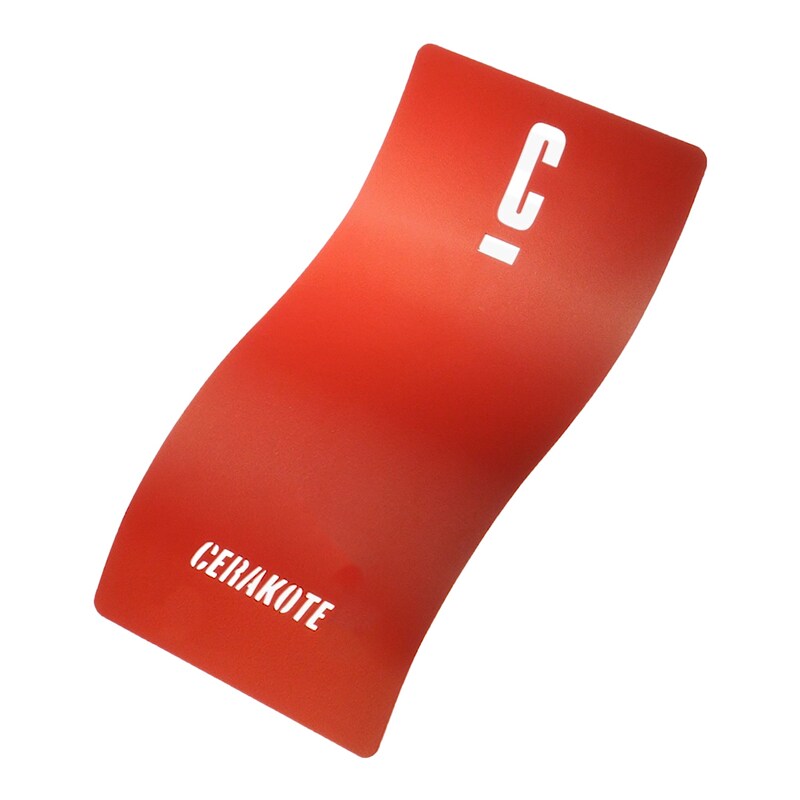

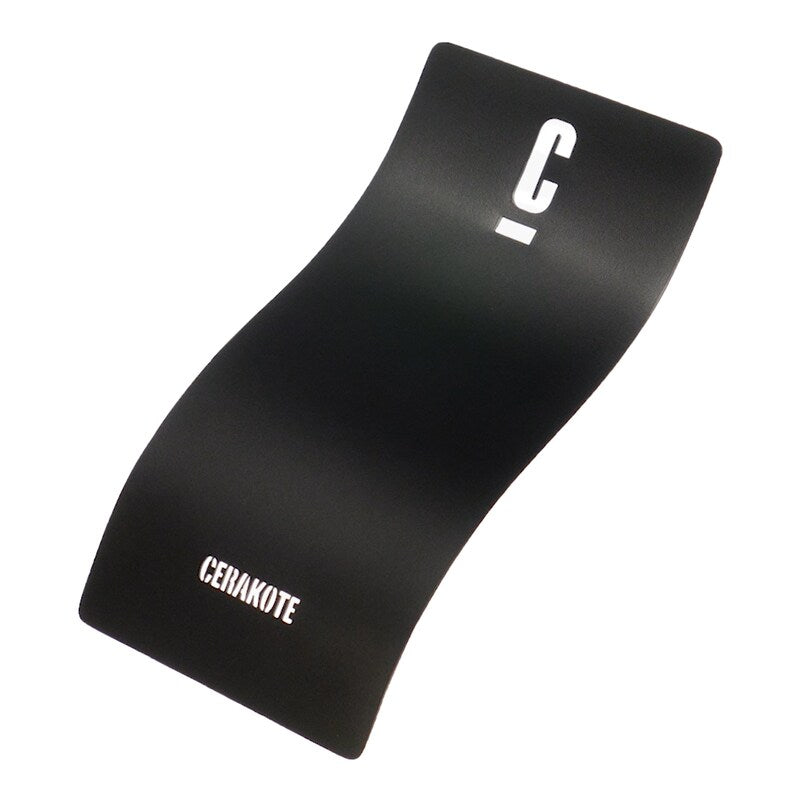

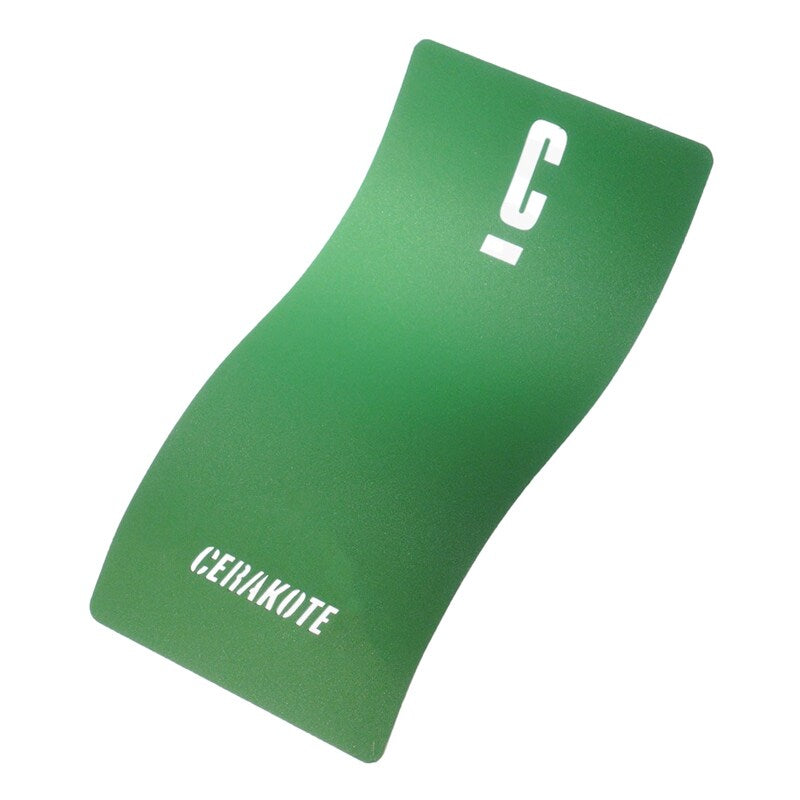

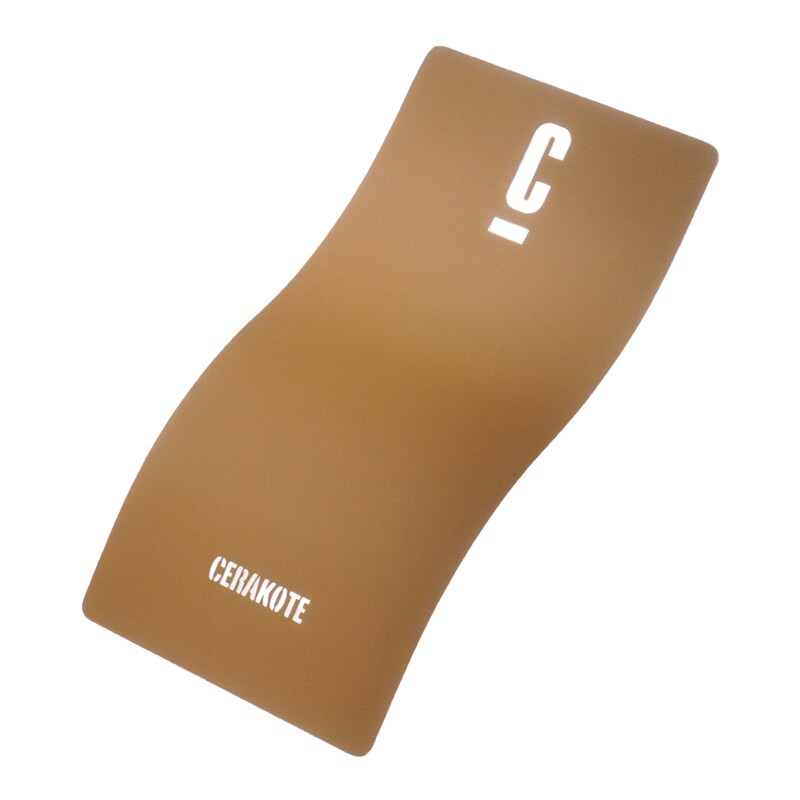

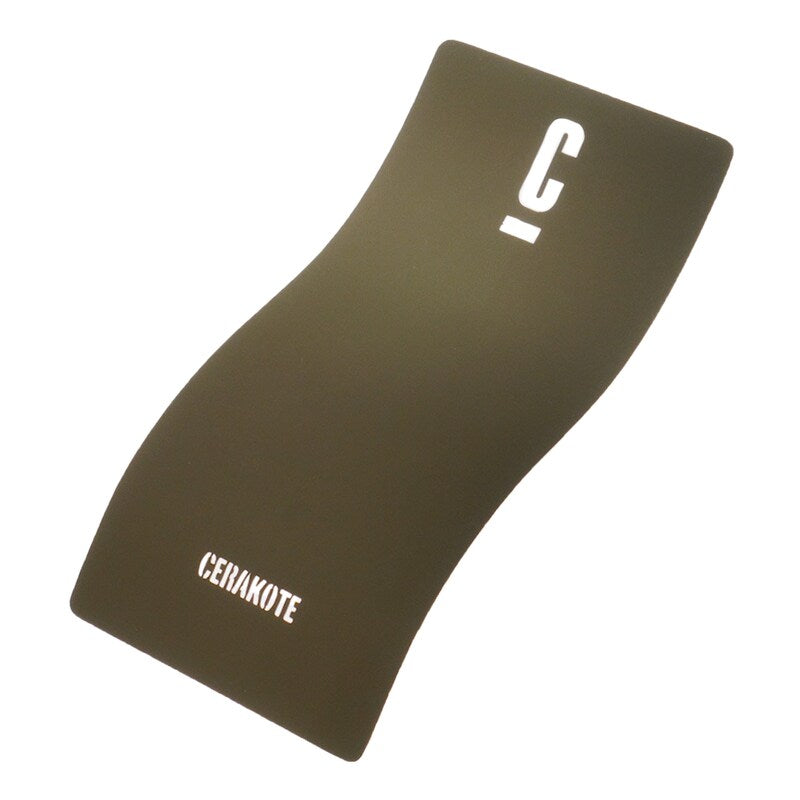

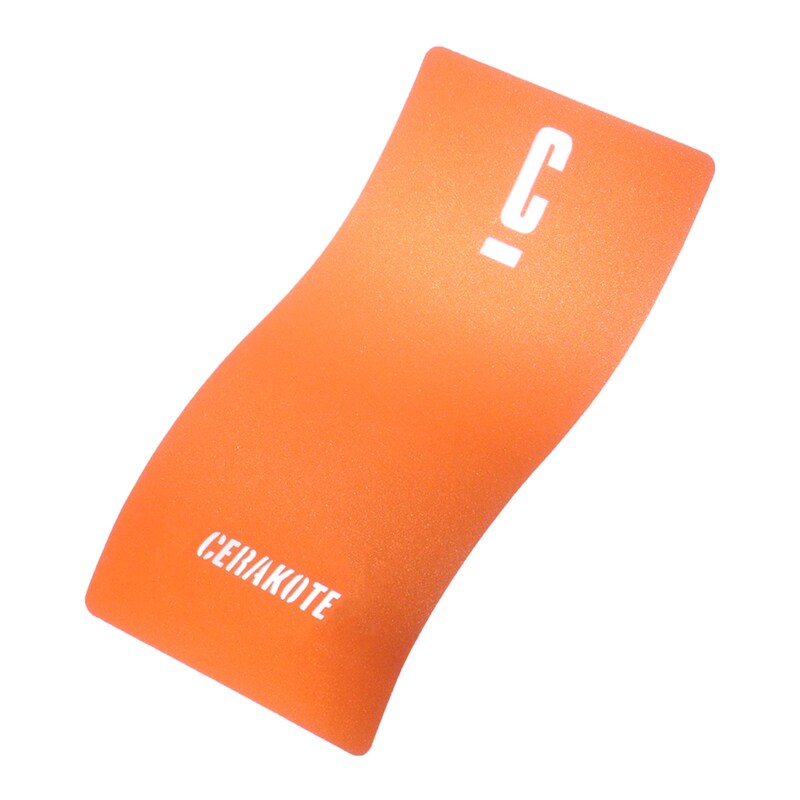

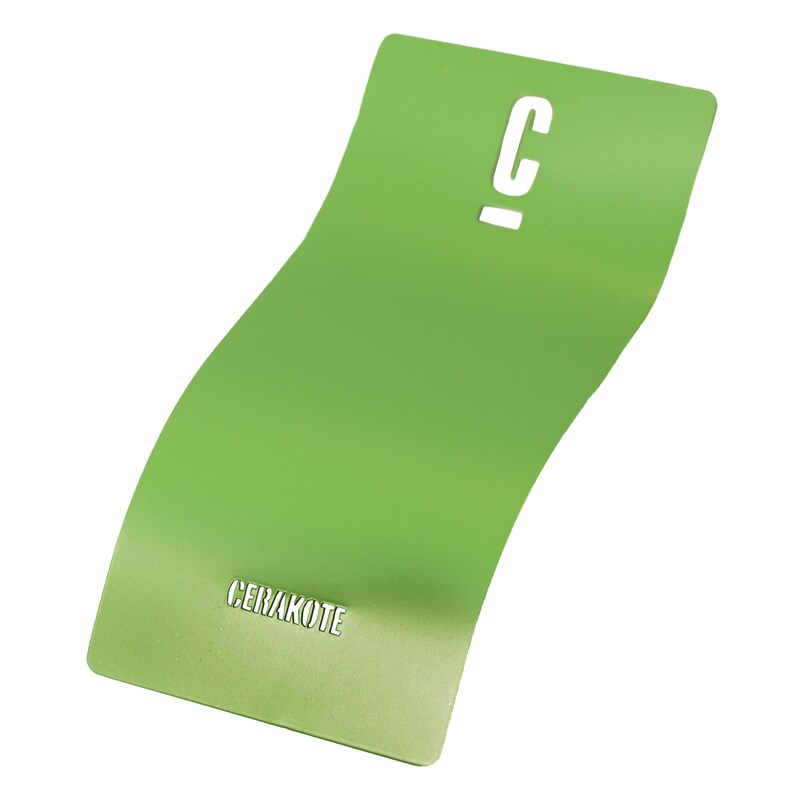

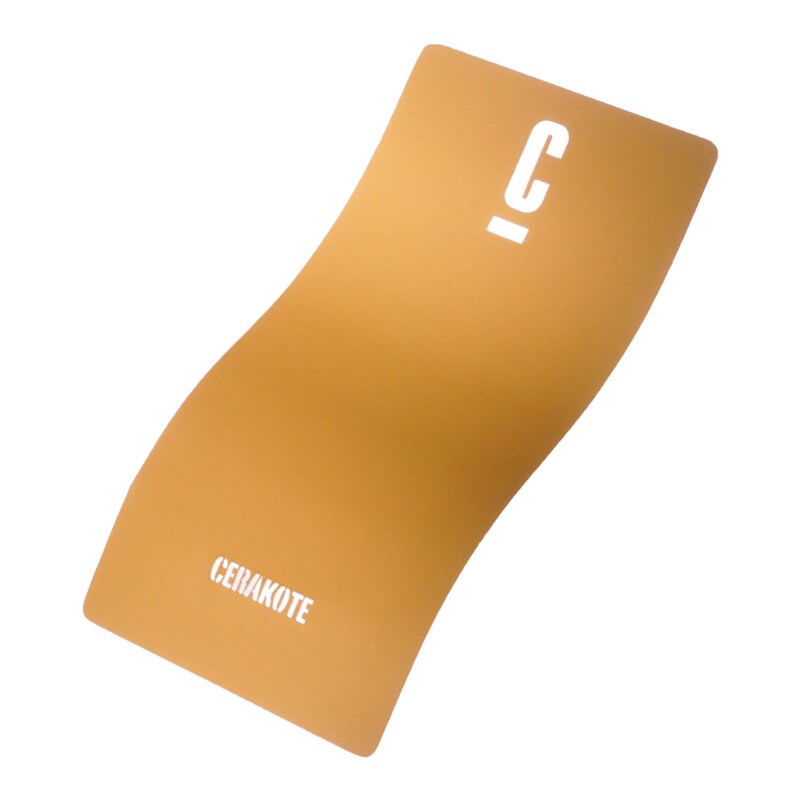

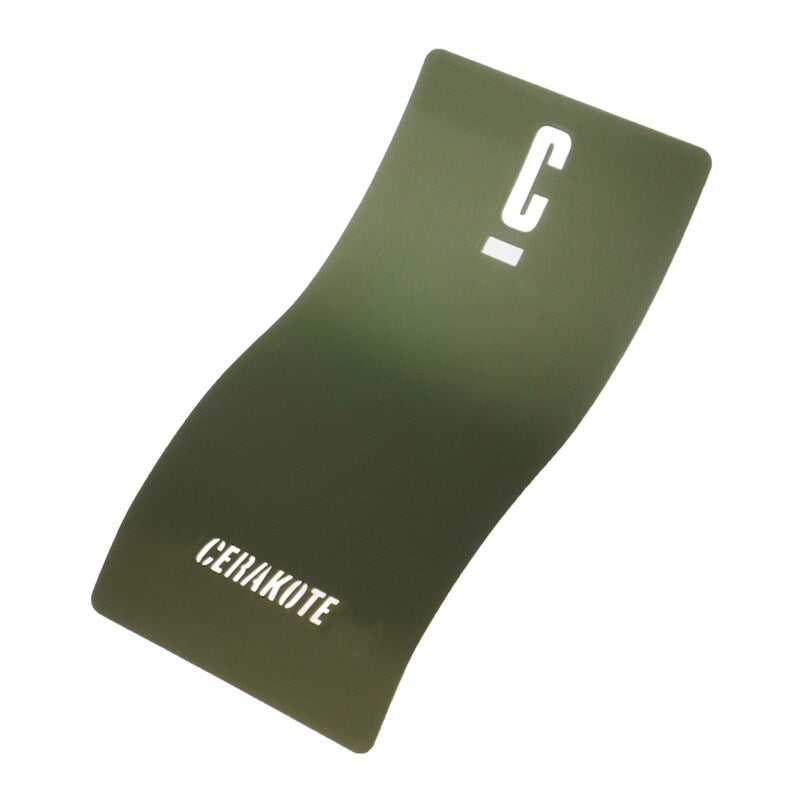

SEE SOME RECENT CUSTOM COLORSPAN
View allWe have partnered wth the best custom painters around. In partnership with our community of dealers, you can get the paintjob of you dreams.
DONT SEE WHAT YOU WANT?
Send a message if you have any questions about paint, custom colours or other options.
